MOTOTRBO DM1000

Digital two-way mobile radio

Download Technical Specification
Download Accessories Catalogue
Further information
Request price

MOTOTRBO DM1000 series analogue / digital two-way mobile radio

The MOTOTRBO DM1000 Series mobile radios offer the benefits of the latest technology from superior audio to greater coverage - all at an affordable price. The rugged MOTOTRBO DM1400 and DM1600 are available as analogue/digital mobile radios that offer all the benefits of the latest technology – from superior audio to greater coverage. These affordable performers are compatible with advanced MOTOTRBO features you’ll find are business-essential, for example a transmission can be interrupted to prioritise critical communications.

You can also choose the analogue-only models of the DM1400 and DM1600, and unlock the capabilities of digital when the time is right: all you will need is a simple software upgrade. And whichever model you choose, the DM1400 and DM1600 will work seamlessly with the radios you have today.

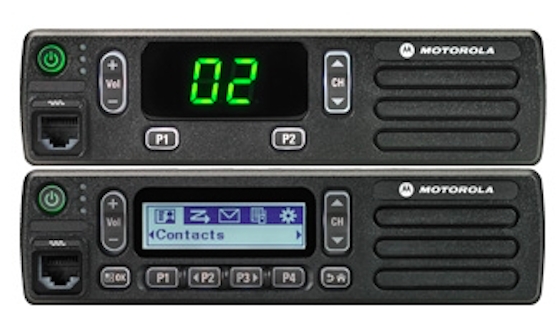

With its bright, high contrast alphanumeric screen, the DM1600 allows drivers to see important information such as caller ID at a glance. The DM1400 offers lower channel capacity and a simpler numeric display.

	DM1400	DM1600
Display	2-digit numeric	2-line black and white
Number of channels	16	160
Programmable buttons	2	4

Features and specifications

•         Analogue and digital modes, Digital Upgrade via software purchase (analogue-only model)
•         Voice communications
•         Dual capacity direct mode1
•         Digital Mobile Radio (DMR) standards compliant1
•         VHF (136…174MHz), UHF1 (403…470MHz)
•         Channel spacing 12.5 kHz / 20 kHz / 25 kHz
•         Transmit power 1..25W with low power model or 25…40W (UHF) / 25…45W (VHF) with high power model
•         4 watt built-in loudspeaker for clear audio
•         Large, textured push-to-talk button for ease of use
•         Programmable buttons to improve ease-of-use and increase operator efficiency
•         Multi-coloured LED indicators provide clear feedback on radio operating status
•         Rugged front and rear accessory connectors
•         Digital emergency via programmable button to help ensure rapid response to critical incidents
•         Sophisticated emergency calls help ensure employee safety
•         Quick, easy-to-use group and individual call capability
•         PTT ID helps improve communications efficiency and system discipline
•         Channel scanning schemes
•         Basic privacy1
•         VOX capability
•         Transmit interrupt (decode-only) 1
•         Lone Worker feature
•         Programmable text messaging capability
•         Voice announcement of channel change and feature activation
•         Fixed installation (desktop configuration) available (R&TTE approved for LP models only)
•         IP54 rated
•         Weight 1.3 kg
•         Operating voltage 10.8…15.6 V DC
