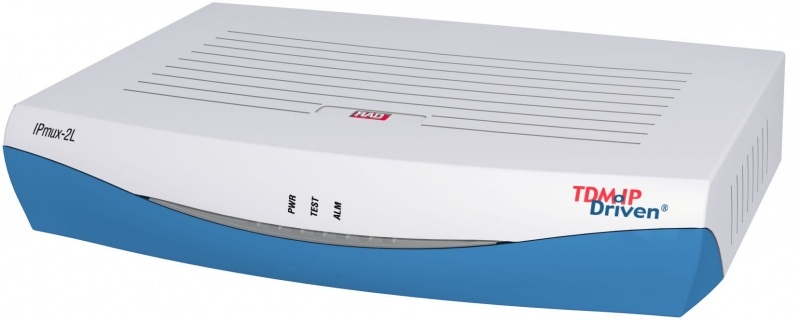

The unit provides a legacy over PSN solution for transmitting E1 streams over packet switched networks (PSNs). The device converts the data stream from its user E1 and high-speed data ports into
packets for transmission over the network. The addressing scheme of these packets is IP or MPLS. These packets are transmitted via the IPmux-2L Ethernet network port to the PSN. A remote pseudowire device converts the packets back to TDM traffic.
IPmux-2L features an internal Layer-2 Ethernet switch with three Ethernet ports. The ports can be configured to operate as network or user interfaces.
Each Ethernet port features:
- Port-based rate limiting for bandwidth control
- Four priority queues (strict or weighted) for handling traffic with different service demands. Traffic is classified according to IP Precedence, 802.1P, DSCP or port default priority.
- Port-based VLAN membership for ingress traffic restriction
- Port-based VLAN tagging
- Double VLAN tagging (VLAN stacking)
- Bridging and filtering.
The device supports standard IP features, such as ICMP (ping), ARP, next hop and default gateway.
